CALIBRE Automotive Diagnostic & Electrical Tools Multifunctional Voltage Tester

FOB Reference Price:Get Latest Price
$1.00 - $100.00 / Set | 300 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan, China
Brand Name:
CALIBRE or Customized Brand
Model Number:
CAW0026
Dimensions:
x
Operating Temperature:
0~50°C
Measuring Range:
6-1000V DC, 24-1000V AC
Accuracy Class:
±3% + 3V
Display Type:
Analog and Digital
Voltage Measuring Range::
6-1000V DC, 24-1000V AC
Voltage Measuring Accuracy::
±3% + 3V
Maximum Current @1000V::
<3.5mA
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
1Set/ Sliding Card
50Set/19/20KGS
Port
Any Taiwanese port.
Product Description

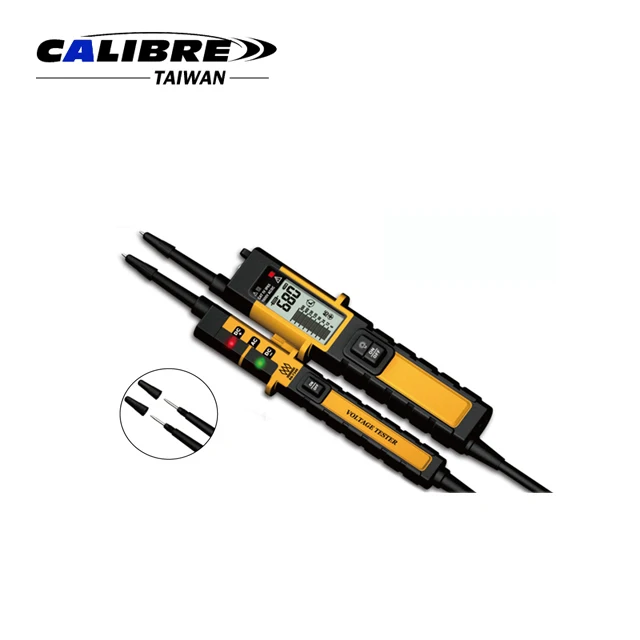

CALIBRE Automotive Diagnostic & Electrical Tools Multifunctional Voltage Tester



ITEM NO: CAW0026

CALIBRE Multifunctional Voltage Tester

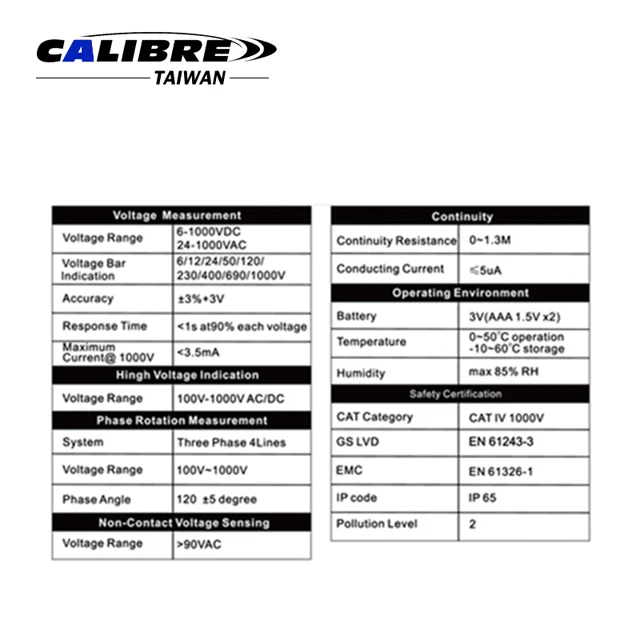

Voltage Measurement:

♦Voltage Range: 6-1000V DC, 24-1000V AC

Voltage Bar Indication: 6/12/24/50/120/230/400/690/1000V

Accuracy: ±3% + 3V

Response Time: <1s at 90% each voltage

Maximum Current @1000V: <3.5mA

High Voltage Indication:

Voltage Range: 100V-1000V  AC/DC

Phase Rotation Measurement:

System: Three Phase 4Lines

Voltage Range: 100V~1000V

Phase Angle: 120 ± 5 degree

Non-Contact Voltage Sensing:

Voltage Range: > 90VAC

Continuity:

Continuity Resistance: 0~1.3M

Conducting Current: ≤ 5uA

Operating Environment:

Battery: 3V (AAA 1.5V x 2)

Temperature: 0~50°C operation

-10~60°C storage

Humidity: max 85% RH

Safety Certification:

CAT Category: CAT IV 1000V

GS LVD: EN 61243-3

EMC: EN 61326-1

IP code: IP 65

Pollution Level: 2

Packing:

1Set/ Sliding Card

♦50Set/19/20KGS
